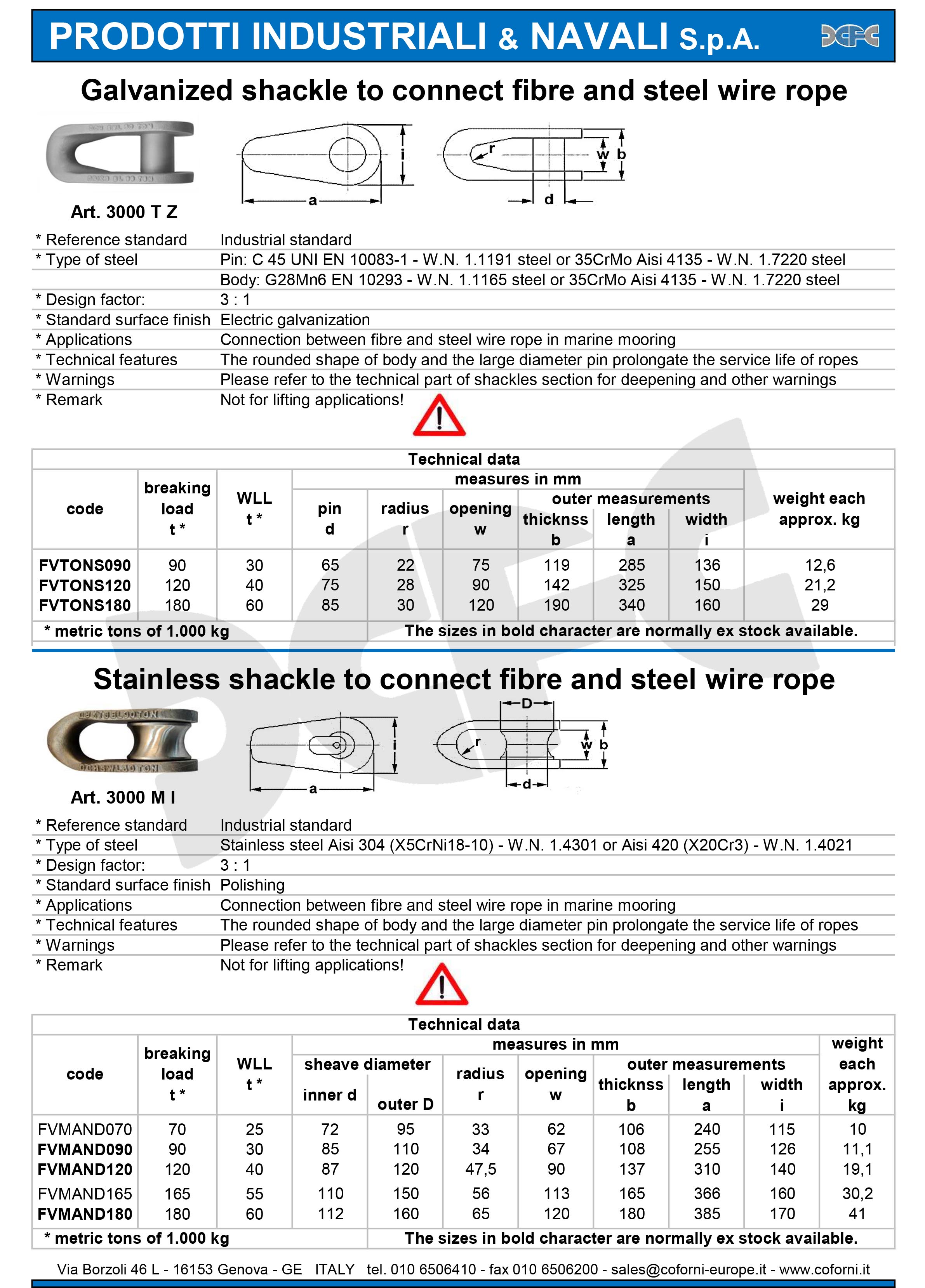

| * Reference standard | Industrial standard | ||||||||||||
| * Type of steel | Pin: C 45 UNI EN 10083-1 - W.N. 1.1191 steel or 35CrMo Aisi 4135 - W.N. 1.7220 steel | ||||||||||||
| Body: G28Mn6 EN 10293 - W.N. 1.1165 steel or 35CrMo Aisi 4135 - W.N. 1.7220 steel | |||||||||||||
| * Design factor: | 3 : 1 | ||||||||||||
| * Standard surface finish | Electric galvanization | ||||||||||||
| * Applications | Connection between fibre and steel wire rope in marine mooring | ||||||||||||
| * Technical features | The rounded shape of body and the large diameter pin prolongate the service life of ropes | ||||||||||||
| Art. 3000 M I | ||||||||||
| * Reference standard | Industrial standard | |||||||||
| * Type of steel | Stainless steel Aisi 304 (X5CrNi18-10) - W.N. 1.4301 or Aisi 420 (X20Cr3) - W.N. 1.4021 | |||||||||
| * Design factor: | 3 : 1 | |||||||||
| * Standard surface finish | Polishing | |||||||||
| * Applications | Connection between fibre and steel wire rope in marine mooring | |||||||||
| * Technical features | The rounded shape of body and the large diameter pin prolongate the service life of ropes | |||||||||
