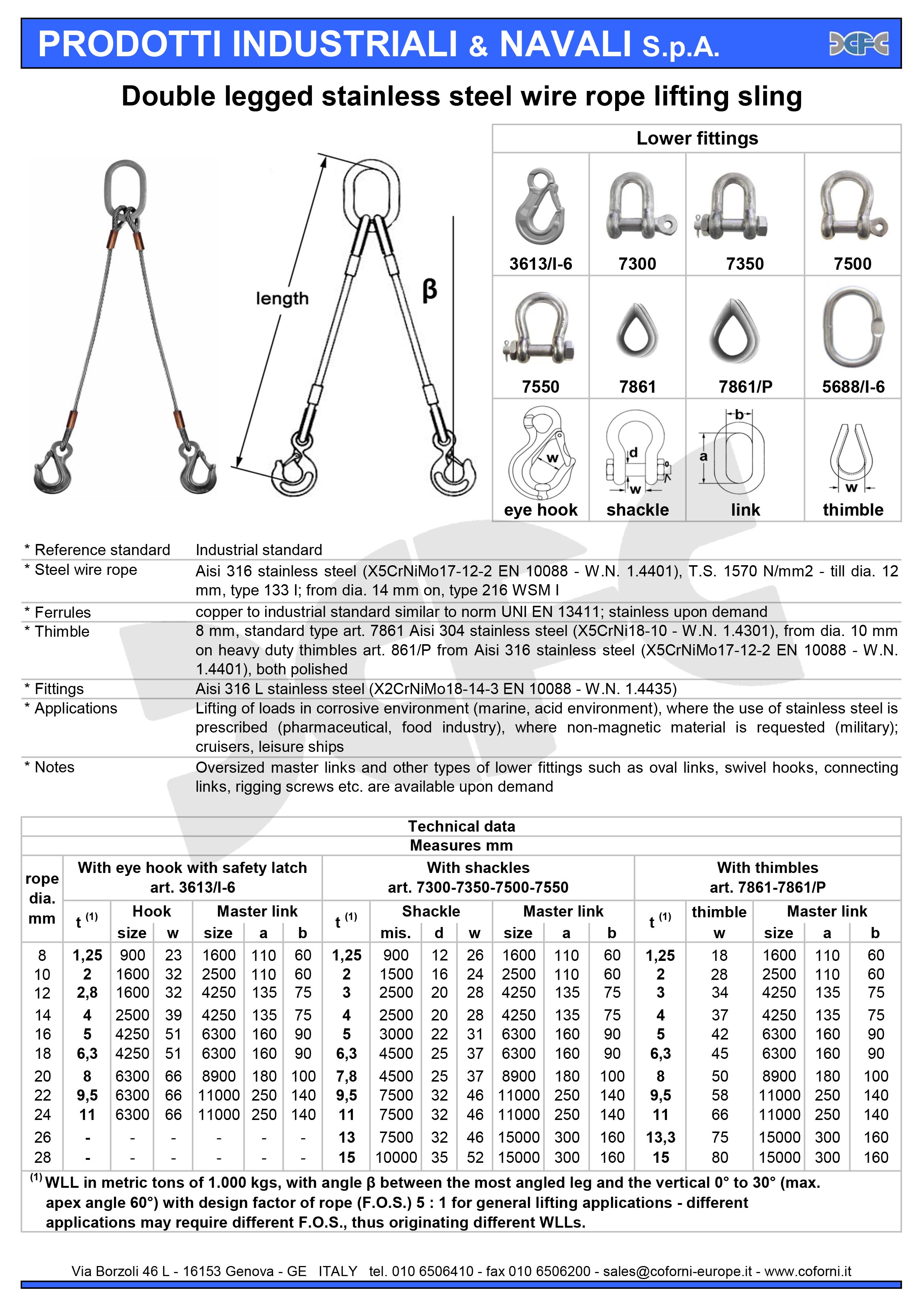

Double legged stainless steel wire rope lifting sling

Steel wire rope

Aisi 316 stainless steel - till and including dia. 12 mm, type 133 I; from dia. 14 mm on, type 216 WSM I

Aisi 316 stainless steel till and including dia. 12 mm, type 133 I; from dia. 14 mm on, type 216 WSM I

Ferrules

Copper ferrules to industrial standard similar to norm UNI EN 13411; stainless upon demand

Thimbles

7 and 8 mm, standard type art. 7861 Aisi 304 stainless steel, from dia. 10 mm on heavy duty thimbles art. 861/P from Aisi 316 stainless steel, both polished

Fittings

All fittings are from Aisi 316 L stainless steel

Applications

Lifting, towing, suspension of loads in corrosive environment (marine, acid environment), where the use of stainless steel is prescribed (pharmaceutical, food industry), where non-magnetic material is requested (military); cruisers, leisure ships

Notes

Oversized master links 3000/IM-5 and other types of lower fittings such as links, swivel hooks, connecting links, rigging screws and other fittings not shown are available upon demand
