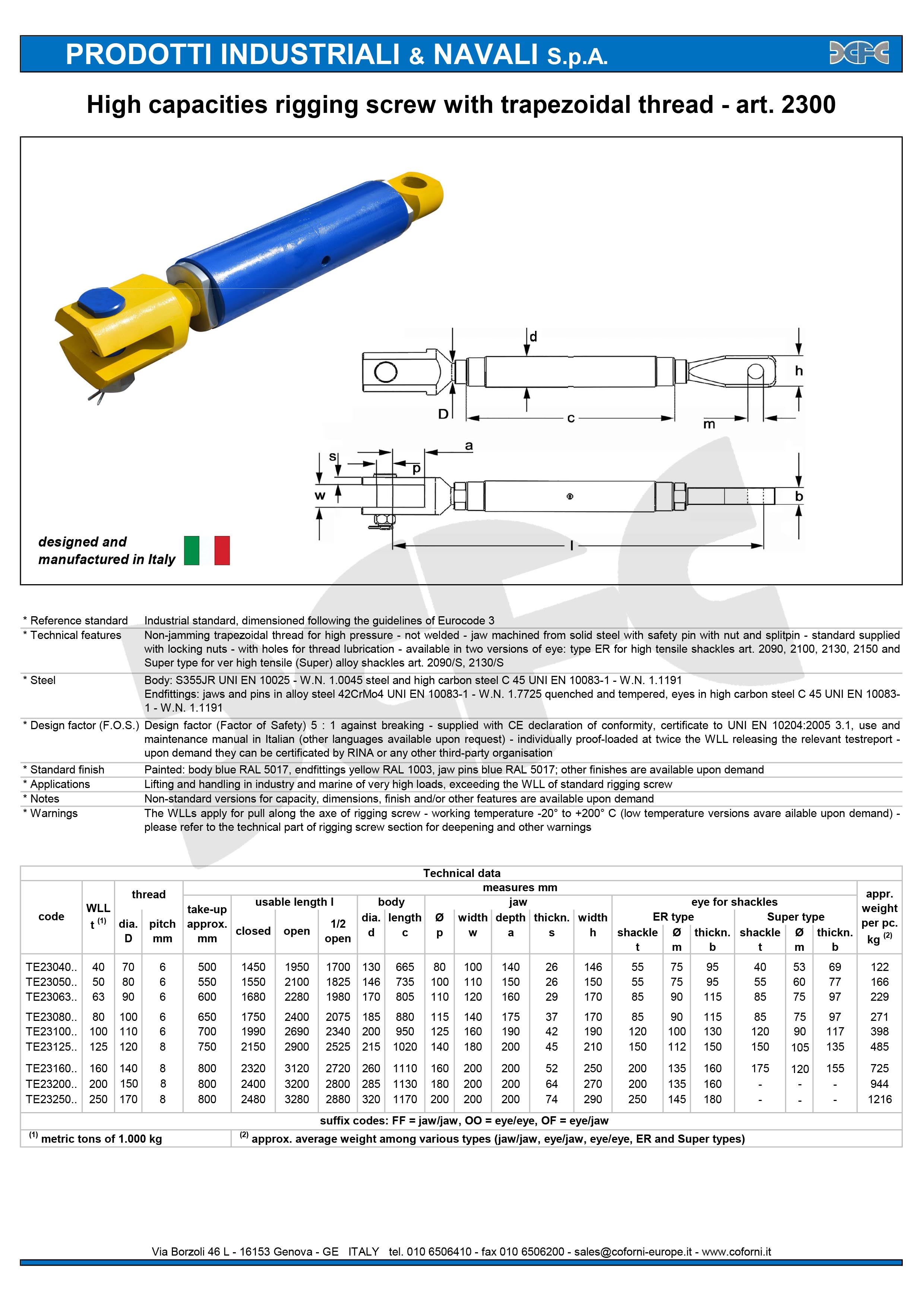

High capacities rigging screw with trapezoidal thread - art. 2300

Steel

Body: S355JR-  steel and high carbon steel C 45
Endfittings: jaws and pins in alloy steel 42CrMo4 quenched and tempered, eyes in high carbon steel C 45

Standard finish

Painted: body blue RAL 5017, endfittings yellow RAL 1003, jaw pins blue RAL 5017; other finishes are available upon demand

Technical features

Non-jamming trapezoidal thread for high pressure - not welded - jaw machined from solid steel with safety pin with nut and splitpin - standard supplied with locking nuts - with holes for thread lubrication - available in two versions of eye: type ER for high tensile shackles art. 2090, 2100, 2130, 2150 and Super type for ver high tensile (Super) alloy shackles art. 2090/S, 2130/S

Applications

Lifting and handling in industry and marine of very high loads, exceeding the WLL of standard rigging screw
